review – Lately, I’ve been having a lot of fun testing out different security systems using gadgets. While this is fun, the ultimate goal is to be able to record everything around your home 24/7. Now, don’t get me wrong. Statistically, I live in one of the safest parts of town, but it’s 2024 and things are getting weird everywhere. One security system is fine for most people, but there are many different needs, including places where only wireless cameras can be installed and places where wired POE cameras are best. I would also like to be able to view live footage and replay past events/alerts. The system I am testing is a combination of a Reolink DUO 3 PoE security camera and an Argus Track WiFi camera.
what is that?
Reolink 4K 12CH WiFi NVR features Wi-Fi 6 and 2.4/5 GHz dual-band WiFi. Its design has a built-in 2TB HDD, supports 12MP/8MP/5MP/4MP HD Reolink IP cameras, and provides 24/7 recording.
Reolink Duo 3 PoE 16MP UHD dual-lens security camera features 180° panoramic view, motion tracking, F1.6 color night vision, person/vehicle/animal detection, and two-way audio.
Reolink Argus Track 4K Solar Security Camera is a wireless outdoor camera. Comes with a 6W adjustable solar panel. Features 2.4/5GHz WiFi, 8MP color night vision, AI detection, and auto zoom tracking.
What’s inside the box?
- 1× Argus Truck WiFi Camera
- 1 x USB-C cable
- 1 x mounting bracket
- 1 x Strap
- 1 x Hardware Kit
- 1 x security sticker
- 1 x User guide
- 1 x solar panel
- 1× Leolink Duo 3PoE
- 1 x waterproof lid
- 1 x 1m network cable
- 1 x mounting plate
- 1 x security sticker
- 1 x Hardware Kit
- 1 x User guide
- 1× 12 Channel Wi-Fi 6 NVR
- 1 x NVR power adapter
- 1 x HDMI cable
- 1 x USB mouse
- 1 x 1m network cable
- 1 x User guide
Hardware specifications
Design and function
Reolink DUO 3 PoE Camera
- 16MP UHD & Color Night Vision: Equipped with two 4K image sensors, this dual-lens camera delivers 16 UHD clarity, ensuring you don’t miss every detail. F1.6 super aperture and 1/2.7-inch CMOS sensor let in more light, and 8x infrared LED light reveals night details up to 100 feet.
- 180° Panoramic View and Motion Track: Dual image stitching algorithm combined with 4-core SoC creates 180° panoramic view with less distortion and blind spots. Thanks to the Motion Track feature, which displays the target’s complete movement over time in a single photo of him, you can save yourself the trouble of reviewing the entire video to find suspicious moments.
- Smart Detection and Two-Way Audio: Smartly detect the movement of people, cars, and animals from other objects and reduce false alarms. When motion is detected, you can instantly receive a push/email and talk to the people on the cam side via two-way audio directly through the Reolink app/client.
- PoE TECH & IP67 Weatherproof: Only one cable handles both data transmission and stable power supply. (Note: DC power adapter not included.) Easy to set up for users of all levels. Reolink Duo 3 PoE withstands all weather conditions and is easy to mount on ceilings or walls. Ideal for a variety of settings.
- Smart User Experience and Time Lapse: Increase monitoring efficiency with multiple smart features, including remote live viewing, custom motion zones, and smart playback (up to 16x speed). Additionally, time-lapse condenses long-term events into minutes, making it easier to observe changes.
DUO 3 has a simple design with 1/4-20mm mounts on the top and bottom, dual left and right lenses on the front, and a power supply and POE cable on the back.
argus truck
- Automatic tracking technology: Automatically detect, track, and record specific vehicles, people, or animals within your coverage area. The pan/tilt function allows you to adjust the direction of the moving object you are tracking and see the entire situation up close from the viewing angle.
- 6X Hybrid Zoom: See everything at a glance with ultra-wide 4K clarity, plus 6x hybrid zoom to see every detail. Easily switch between distant view and close-up for a realistic monitoring experience. Nothing goes unnoticed and the grounds are fully protected.
- Bright and clear night vision: 4K 8MP resolution provides vivid and colorful night vision. Equipped with an f/1.6 aperture sensor and two spotlights, it can identify faces up to 30 meters (100 feet) day or night. Darkness is no longer an obstacle. Enhanced security with unparalleled clarity.
- Smart person/vehicle/animal detection: Easily detect various moving objects. When motion is detected, spotlights and sirens are activated. Receive push notifications instantly on your smartphone. Welcome your guests and warn of intruders with bright LED lights and a loud siren.
- Flexible storage options: Save camera footage at any time without requiring a base station. Save recordings via up to 128 GB mircoSD card (sold separately). Advanced encryption technology protects your videos and prevents unauthorized access even if your camera is stolen or damaged.
Argus Track 4K Solar Security Camera, Wireless Outdoor Camera features dual lenses on the front and one USB-C port on the back. This port is used for power or solar charging.
Reolink 4K 12CH WiFi NVR
- 2.4/5 GHz Dual-Band WI-FI 6: Experience improved stability, faster video transmission, and minimized latency with the most advanced Wi-Fi 6 NVR complemented by dual-band WiFi. Enhance your data security with the advanced WPA3 protocol to ensure your information is protected.
- Easy setup and camera management: Easy installation simplifies setup as WiFi cameras can seamlessly connect to network video recorders without the need for wiring. Enjoy ultimate convenience when managing all your security cameras. (An Ethernet cable is required for initial network configuration.)
- 24/7 recording and local storage: Enjoy continuous recording with ample storage (expandable up to 16TB). Keep your assets safe 24/7 without worrying about storage space. All recordings are stored locally for your peace of mind.
- Live View & Remote Access & No Additional Charges: Never miss a motion event captured by your camera. View live feeds and control your camera freely from anywhere. (Additional speakers are required for two-way audio.) There is no additional charge.
- DIY Security System: RLN12W accommodates up to 12 cameras. All Reolink IP cameras except battery versions integrate into WiFi NVRs including E1 Pro, RLC-510WA, E1 Outdoor, TrackMix WiFi, Duo 2 WiFi, RLC-810WA, E1 Outdoor Pro, Video Doorbell WiFi, and other models can do. . Participate in building a customized surveillance system. (PoE cameras must be connected via an Ethernet cable and power adapter.)
The Reolink 12 Channel Wi-Fi 6 NVR is a simple, slim metal box with a USB-A port and LED indicator light on the front. The remaining ports/connections are on the back. The back has a power port, a USB-A port for the mouse, an HDMI port, a VGA port, an audio port, a LAN port, and four Ethernet ports, as shown below. Above the ports are four antenna jacks.
setting
setup The Argus Track 4K Solar Security Camera is very simple. Once fully charged, use the Reolink app to scan the camera’s QR code and add it to Wi-Fi. The process is simple and not difficult.
Setting up Reolink NVR and DUO 3 will take a little more time. After you connect the antenna and connect the NVR to your network, go through the setup process screen by screen. I first connected the DUO 3 to his NVR as shown below, but once the NVR setup process was complete, the camera disappeared. I don’t usually look at manuals, but in this case I had to quickly realize that although this NVR supports POE cameras, it doesn’t have a POE port. To connect the DUO 3 POE camera, I had to connect it to one of the POE network switches. Another option is to connect it to a regular network switch and use the AC adapter that isn’t included. Once connected to the POE network switch, the NVR now recognizes it on the network and can connect using its IP.
NVR setup:
App:
performance
Reolink 12 Channel Wi-Fi 6 NVR, DUO 3 16MP UHD Dual Lens PoE Security Camera, Argus Track WiFi Camera all perform well. I like the NVR, including its recording capabilities. Both cameras display beautiful, clear real-world distance and close-up perspective. I think the POE camera should come with an AC adapter since the NVR doesn’t have a built-in POE port. Other than that, I’m satisfied with each component and functionality. I’m having a strange problem with my APP. I had an old Reolink camera that I got rid of, and I need to delete it from the app, but it won’t get deleted no matter how many times I use Delete Selection. I also noticed that the Argus Track pan/tilt camera would not pan upwards once it was completely level. Cover the entire range with left, right, and downward movements.
Images from the Argus Track WiFi camera app:

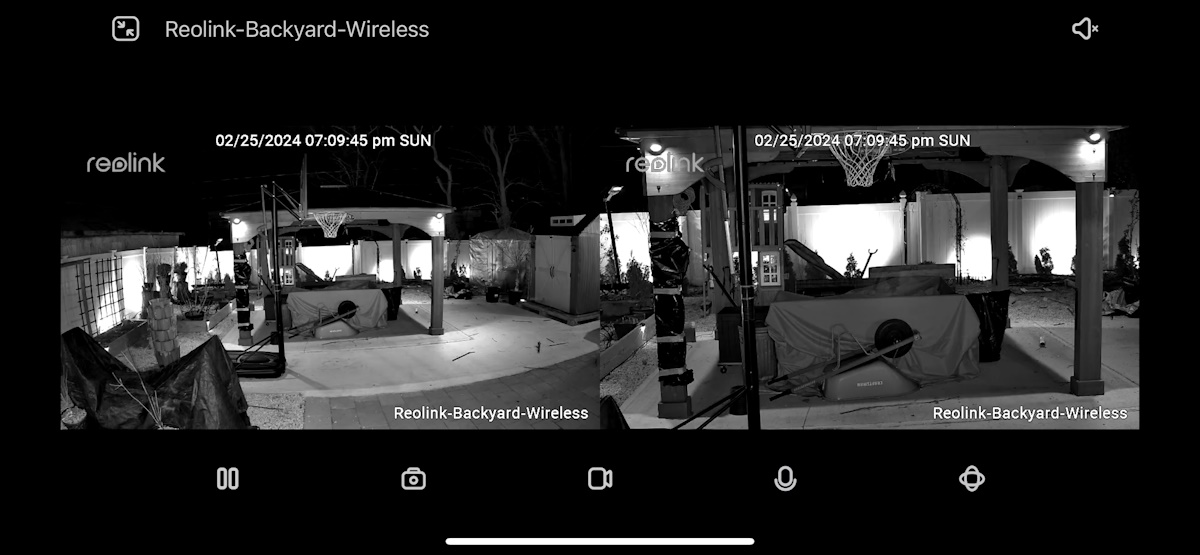

Images from the DUO 3 camera app:
my favorite thing
- Camera offers excellent resolution and video quality
- All components are properly constructed
- NVR works well
- Can use multiple types of cameras
- The connection is rock solid
- Argus Track WiFi camera pan and tilt functionality
What needs improvement
- POE cameras cannot be directly connected to NVR
- Unable to remove disconnected camera from app
final thoughts
Reolink 12 Channel Wi-Fi 6 NVR, DUO 3 16MP UHD Dual Lens PoE Security Camera, Argus Track WiFi Camera all work fine. Each component is well-built, performs well, and provides great options for monitoring and recording 24-hour security video.
price: DUO 3 – $189.99, Argus Track – $209.99, NVR – $229.99
Where to buy:
Amazon – Reolink DUO 3 POE camera
Amazon – Argus Track Security Camera
Amazon – Reolink 4K 12CH WiFi NVR
leo link website
sauce: A sample of this product was provided by Leolink.
